Architecture

The Reconmap multi-tier architecture was designed to scale and serve anything from small pentesting teams to large infosec organisations. At a high-level it consists of multiple clients (web and command line) that communicate to a Rest API to get and process information. Data is stored permanently in a MySQL database, and a Redis service is used to cache information.

A keycloak identity service (Open ID connect) is used to authenticate users and JWT tokens are also used for service to service communication.

The last part of this architecture is Rabbitmq, a message queue and broker.

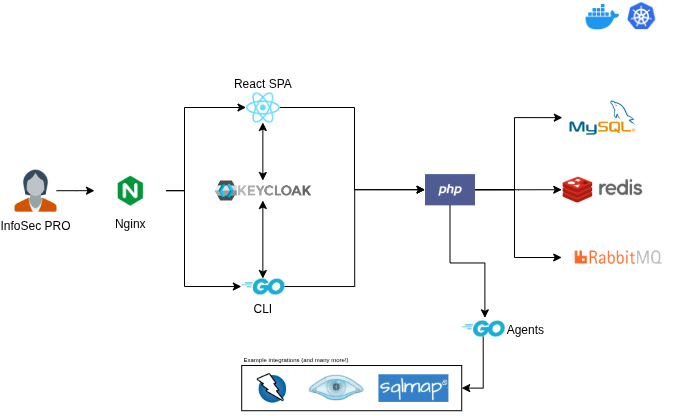

The diagram above was created from code using draw.io. See the source here.
